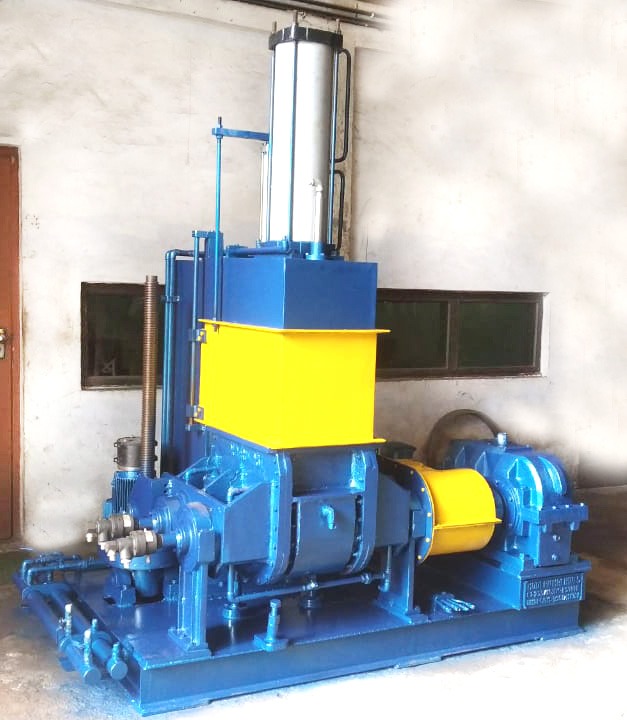

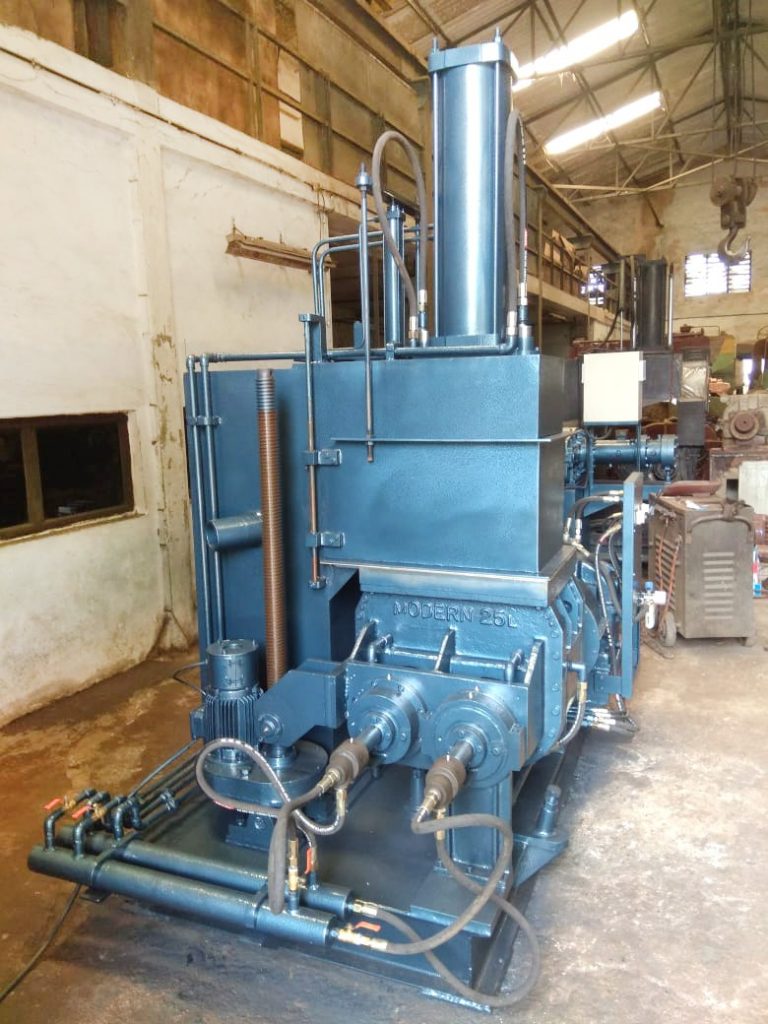

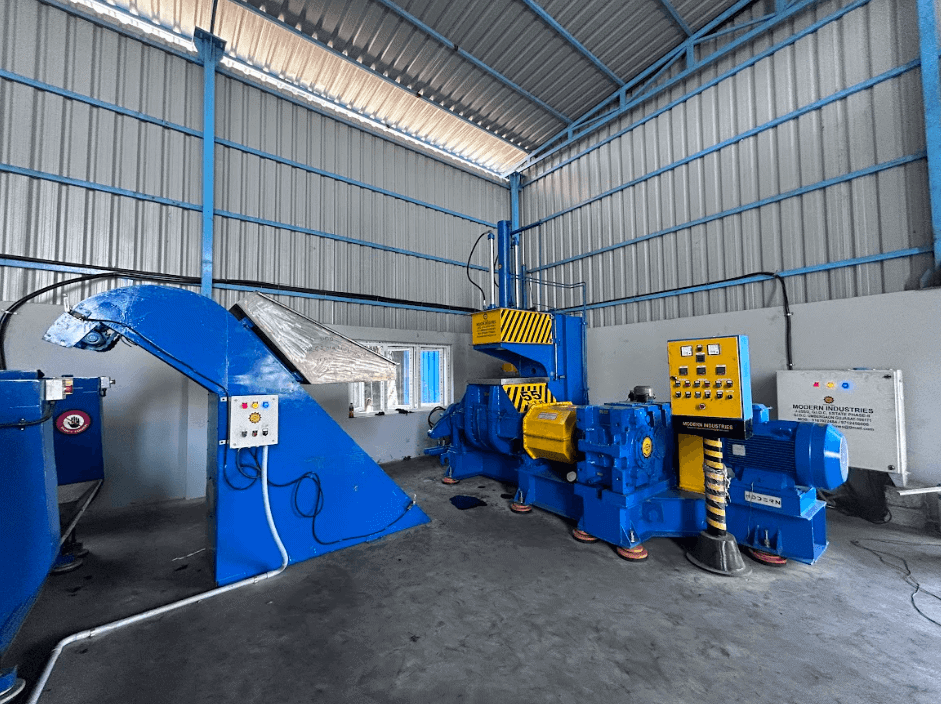

Dispersion Kneader
Unique Internal Mixing Machine for Internsive Kneading of Rubber with other ingredients.
Modern make kneaders are best suitable for intensive mixing and dispersion of rubber compounds under controlled temperature and pressure conditions, best suitable for mixing rubber for masterbatches, automotive, tyre manufacturing, conveyor belts, hoses, stationery, cables, industrial rubber products.
Hydraulically operated fully automatic kneader with PLC and HMI and VFD for suitable applications, recipe management, data recording, digital temperature indications, effective rotor and chamber cooling for achieving optimum batch mixing properties in minimal time.
Following are the specifications for the machine :
| Model | Capacity in Ltrs | HP | Weight (KGS.) | Tilting Motor (HP) |
|---|---|---|---|---|
| MIKH-1 | 5 | 7.5/1500 | 1800 | 1 |
| MIKH-2 | 15 | 10/1500 | 3100 | 2 |
| MIKH-3 | 25 | 30/1500 | 6200 | 2 |
| MIKH-4 | 35 | 60/1500 | 7500 | 3 |
| MIKH-5 | 55 | 75/1500 | 8500 | 3 |
| MIKH-6 | 75 | 90/1500 | 9500 | 5 |
| MIKH-7 | 100 | 120/1500 | 11500 | 5 |
| MIKH-8 | 125 | 150/1500 | 13000 | 5 |
| MIKH-9 | 150 | 200/1500 | 15000 | 7.5 |
