Hydraulic Presses

Compression Moulding Hydraulic Press We offer wide range of Compression Moulding Presses, Vacuum Moulding Presses and Tailor made optimized Hydraulic Presses for special purposes based on our client’s requirement.

Our presses are Precise, highly efficient, High-speed hydraulic presses which provide Improved cycle time, higher production rates. Our presses are available in various platen sizes and tonnage capacities; we can also supply multi daylight or multi station presses with various heating options to suit client’s requirement.

We offer Fully Automatic Presses with mould IN – OUT feature or with 2, 3, 4-piece mould handling system.

The table indicates specifications for standard and frequently sold MODERN Hydraulic Presses (electrically or steam heated) :

Series	Hot Platen Size in cm	Capacity in Tonnes	RAM Dia in mm
MMH-1	30X30	40	150
MMH-2	40X40	65	200
MMH-3	50X50	100	250
MMH-4	60X60	150	300
MMH-5	70X70	200	350
MMH-6	80X80	260	400
MMH-7	90X90	330	450
MMH-8	100X100	410	500
MMH-9	120X120	590	600
IN ALL THE SERIES:	WORKING PRESSURE – 210 KGS/CM STROKE – 400MM DAYLIGHT NOS. – 3-4

Single Station Hydraulic Press

Single Station Hydraulic Press
Model	MI-HP-12	MI-HP-14	MI-HP-16	MI-HP-18	MI-HP-20	MI-HP-24	MI-HP-28	MI-HP-30	MI-HP-32	MI-HP-36	MI-HP-40	MI-HP-42	MI-HP-48
Press Type	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar
Platen Size (mm)	300×300	360×360	410×410	460×460	500×500	600×600	710×710	760×760	810×810	910×910	1000×1000	1060×1060	1200×1200
Capacity (Tons)	37	65	100	150	200	250	300	350	400	500	600	600	600
No. of Daylight	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single
Daylight Gap (mm)	300	300	300	300	300	300	300	300	300	300	300	300	300
Model of Heating	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric
Ram dia	150	200	250	300	350	400	450	500	500	500	500	500	600
Ram Stroke	150	300	300	300	300	300	300	400	400	400	400	400	400
Hydraulic Pressure (Kg/cm)	210	210	210	210	210	210	210	210	210	210	210	210	210
Motor (HP/Rpm)	2/1500	2/1500	3/1500	3/1500	5/1500	5/1500	7.5/1500	7.5/1500	10/1500	10/1500	15/1500	15/1500	15/1500

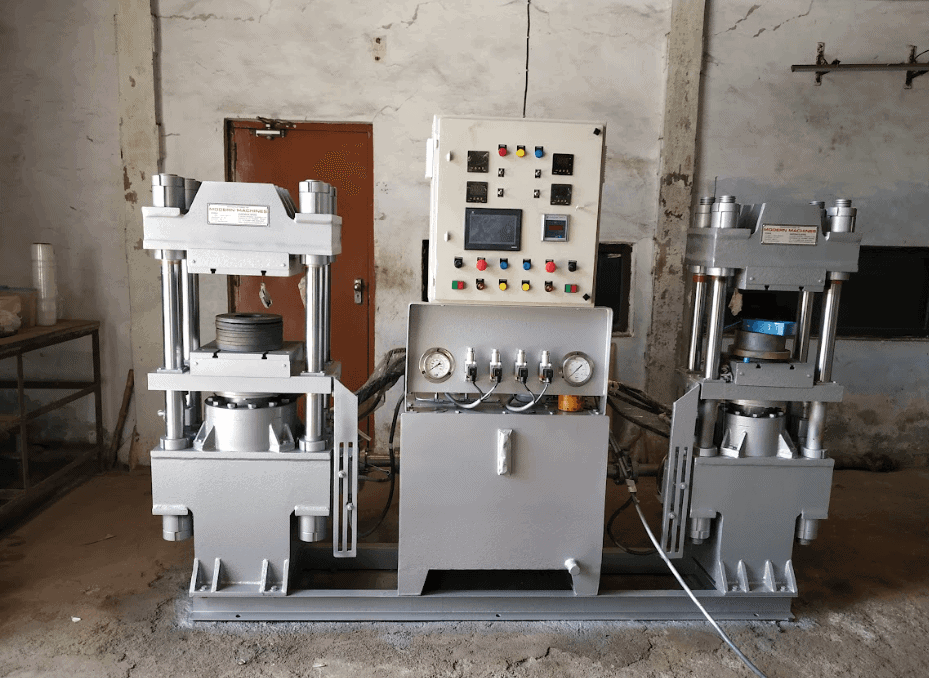

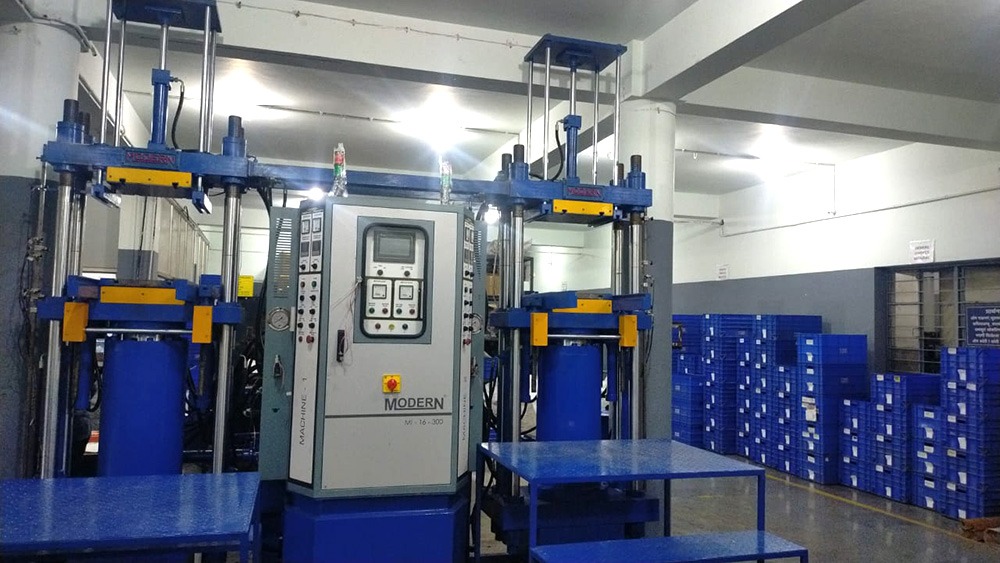

Double Station Hydraulic Press

Double Station Hydraulic Press
Model	MI-THP-12	MI-THP-14	MI-THP-16	MI-THP-18	MI-THP-20	MI-THP-24	MI-THP-28	MI-THP-30	MI-HP-32	MI-THP-36	MI-THP-40	MI-THP-42	MI-HP-48
Press Type	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar	Pillar
Platen Size (mm)	300×300	360×360	410×410	460×460	500×500	600×600	710×710	760×760	810×810	910×910	1000×1000	1060×1060	1200×1200
Capacity (Tons)	37	65	100	150	200	250	300	350	400	500	600	600	600
No. of Daylight	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single
Daylight Gap (mm)	300	300	300	300	300	300	300	300	300	300	300	300	300
Model of Heating	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric
Ram dia	150	200	250	300	350	400	450	500	500	500	500	500	600
Ram Stroke	150	300	300	300	300	300	300	400	400	400	400	400	400
Hydraulic Pressure (Kg/cm)	210	210	210	210	210	210	210	210	210	210	210	210	210
Motor (HP/Rpm)	2/1500	2/1500	3/1500	3/1500	5/1500	5/1500	7.5/1500	7.5/1500	10/1500	10/1500	15/1500	15/1500	15/1500

Presses for Precured Thread Rubber, Vee Belts, Conveyor Belt Making, Flap Moulding and such other special purpose Hydraulic Presses are within the range of manufacture for which ‘MODERN’ are well-known. Details available against enquiry.
