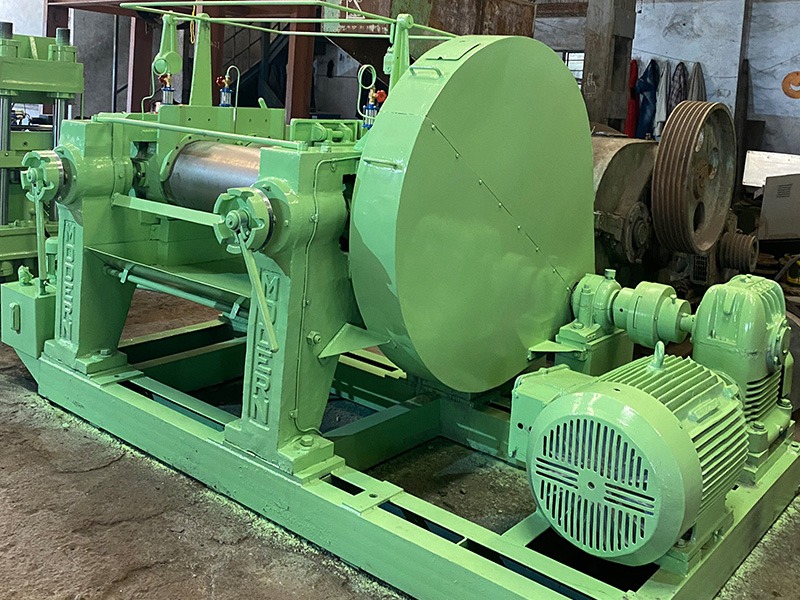

Rubber Mixing Mill
Modern Machines: Revolutionizing Rubber Mixing Mill Technology
Technological innovation in rubber mixing mills has reached its zenith at Modern Machines, an outstanding leader in manufacturing and exporting advanced rubber processing machinery. We have been a preferred partner for manufacturers of rubber products globally since half a century back proudly in India as well as in other countries such as Sri Lanka, USA, Africa, UAE, and Saudi Arabia.
Advanced Lubrication System:
This makes it possible to enhance machine life by having a motorized grease pump in place which incorporates an automatic lubrication system with time-based controls. Also provided is an option for manual grease pump alternative to reduce cost.
Roll heating & cooling
- Through universal rotary joints with internal spray pipes.
- Through water coupling
Advanced Safety Precautions:
Safety Features / Emergency Brakes: There are various types of emergency brakes like
- Emergency Stop Push Button – limit switch
- Electric / Hydraulic Thrustor Brake
- Knee / Foot Brake
- Cradle Bar,
- Cable,
- Chest Guard for increased safety.
- Indication in HMI for Safety Warnings / Alerts.
- Buzzer Alarm
Additional Features:
- Cross / Stock Blender
- Digital Motorized nip gap adjustment
- Cutting knives with/without pneumatic arrangement
- Scrapper blade
- SS Stock Tray
- Smart Storage for tools and equipment
- Water-cooled housings
- Labyrinth seal for housings roll speed and friction ratio options
- Thick gauge heavy M.S. Sheet metal gear guards
- Vibro Mounts: It ensures stability and reduced vibration during operations
- Safety grill
- Gear guards
- Guide rolls
| ITEM DESCRIPTION | AFB | ||
|---|---|---|---|
| Rear Roll Drive | Direct Drive / Uni Drive | ||
| Base | Mono – Base Steel bed construction | ||
| Rear Roll Speed | 19 RPM (Appx.) | ||
| Friction Ratio | 1: 1.2 (Appx.) | ||
| Rolls | Chilled Cast Iron Rollers with chilled depth of Appx. 18 to 20mm & Surface Hardness 500 (±20) BHN. Hollow Cored for circulation of cooling medium. | ||
| Roll Bearing | Anti – Friction Roller Bearings | ||
| Item Description | AFB | ||
|---|---|---|---|
| Rear Roll Drive | Direct Drive / Uni Drive | ||
| Size Model No. | Roll Size | Motor (HP/RPM) | Batch Capacity |
| M1 – AFB | 10″ x 24″ | 15/1000 | 8 – 10 Kgs |
| M2 – AFB | 12″ x 30″ | 25/1000 | 18 – 20 Kgs |
| M3 – AFB | 14″ x 36″ | 40/1000 | 28 – 30 Kgs |
| M4 – AFB | 16″ x 42″ | 60/1000 | 38 – 40 Kgs |
| M5 – AFB | 18″ x 48″ | 75/1000 | 45 – 50 Kgs |
| M6 – AFB | 22″ x 60″ | 120/1000 | 65 – 80 Kgs |
| M7 – AFB | 26″ x 84″ | 215/1000 | 90 – 105 Kgs |
| M8 – AFB | 30″ x 100″ | 300/1000 | 125 – 200 Kgs |
