High-Precision Hydraulic Presses — Engineered for Superior Compression Molding

Versatile molding solutions for automotive components, industrial rubber mats, conveyor belts, and solid tires with capacities ranging from 50 to 2500 tons.

What is Hydraulic Press?

MODERN Hydraulic Presses are designed for high-tonnage compression molding with extreme structural integrity. Available in pillar, frame, and window-type configurations, these machines offer uniform pressure distribution and precise temperature control across high-grade heating platens. Integrated with advanced PLC systems, they ensure repeatable quality and efficient curing cycles for complex rubber and polymer components.

Hydraulic Press Technical Specifications
FeatureDescription
Press TypeHigh-durability Pillar Type construction
Working PressureStandardized at 210 Kgs/Cm² for peak performance
Heating MethodChoice of Electric or Steam heating options
Mould HandlingFully Automatic with IN–OUT feature
Daylight GapStandard 300mm gap (Customizable per requirements)
Standard StrokeRobust 400mm stroke for versatile operations
Detailed Hydraulic Press Specifications

Single Station Hydraulic Press

↔ Scroll horizontally to view all models

ModelMI-HP-12MI-HP-14MI-HP-16MI-HP-18MI-HP-20MI-HP-24MI-HP-28MI-HP-30MI-HP-32MI-HP-36MI-HP-40MI-HP-42MI-HP-48
Press TypePillarPillarPillarPillarPillarPillarPillarPillarPillarPillarPillarPillarPillar
Platen Size (mm)300x300360x360410x410460x460500x500600x600710x710760x760810x810910x9101000x10001060x10601200x1200
Capacity (Tons)3765100150200250300350400500600600600
No. of DaylightSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingle
Daylight Gap (mm)300300300300300300300300300300300300300
Model of HeatingElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectric
Ram dia150200250300350400450500500500500500600
Ram Stroke150300300300300300300400400400400400400
Hydraulic Pressure (Kg/cm)210210210210210210210210210210210210210
Motor (HP/Rpm)2/15002/15003/15003/15005/15005/15007.5/15007.5/150010/150010/150015/150015/150015/1500
Detailed Hydraulic Press Specifications

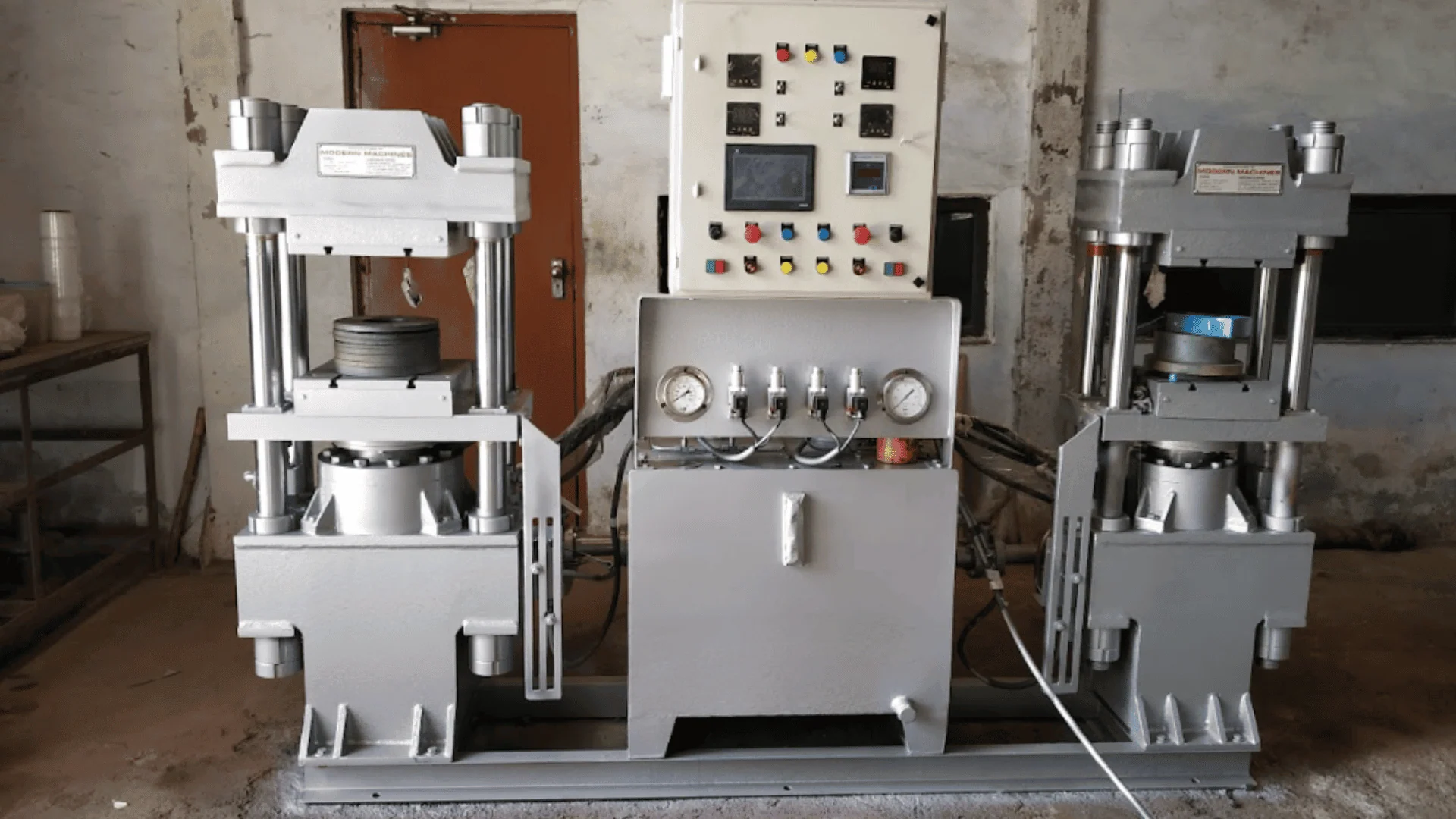

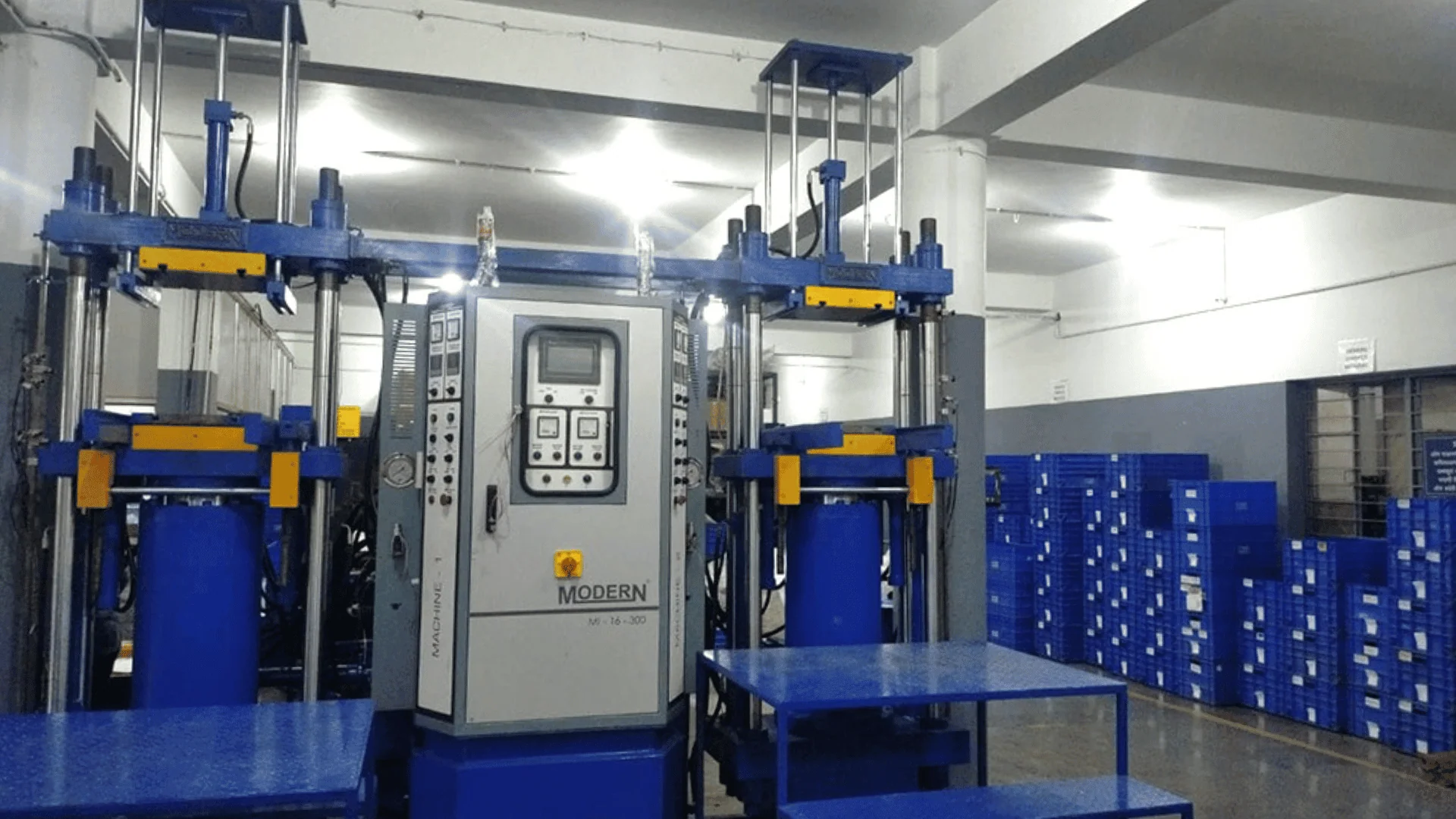

Double Station Hydraulic Press

ModelMI-THP-12MI-THP-14MI-THP-16MI-THP-18MI-THP-20MI-THP-24MI-THP-28MI-THP-30MI-THP-32MI-THP-36MI-THP-40MI-THP-42MI-THP-48
Press TypePillarPillarPillarPillarPillarPillarPillarPillarPillarPillarPillarPillarPillar
Platen Size (mm)300x300360x360410x410460x460500x500600x600710x710760x760810x810910x9101000x10001060x10601200x1200
Capacity (Tons)3765100150200250300350400500600600600
No. of DaylightSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingle
Daylight Gap (mm)300300300300300300300300300300300300300
Model of HeatingElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectric
Ram dia150200250300350400450500500500500500600
Ram Stroke150300300300300300300400400400400400400
Hydraulic Pressure (Kg/cm)210210210210210210210210210210210210210
Motor (HP/Rpm)2/15002/15003/15003/15005/15005/15007.5/15007.5/150010/150010/150015/150015/150015/1500
MODERN hydraulic presses feature a high-efficiency power pack designed for rapid closing and slow pressing speeds, which minimizes air entrapment and ensures defect-free molding. The integrated PLC allows for multiple programmable degassing strokes and precise pressure holding, critical for high-density rubber products. The heating platens are manufactured from high-grade steel and ground to fine tolerances, ensuring uniform heat transfer across the entire surface and preventing flash formation during the curing cycle ”
