Laboratory Mixing Mill Manufacturer India — Lab Two Roll Mill
Roll sizes 6"×13" to 8"×18" · 1–2 kg batch capacity · VFD Uni-Drive · HMI touchscreen · Motorised nip · 4 model configurations · For R&D, QC, and ISO-certified rubber labs.
At a Glance - Laboratory Mixing Mill Specifications
What is a Laboratory Mixing Mill?

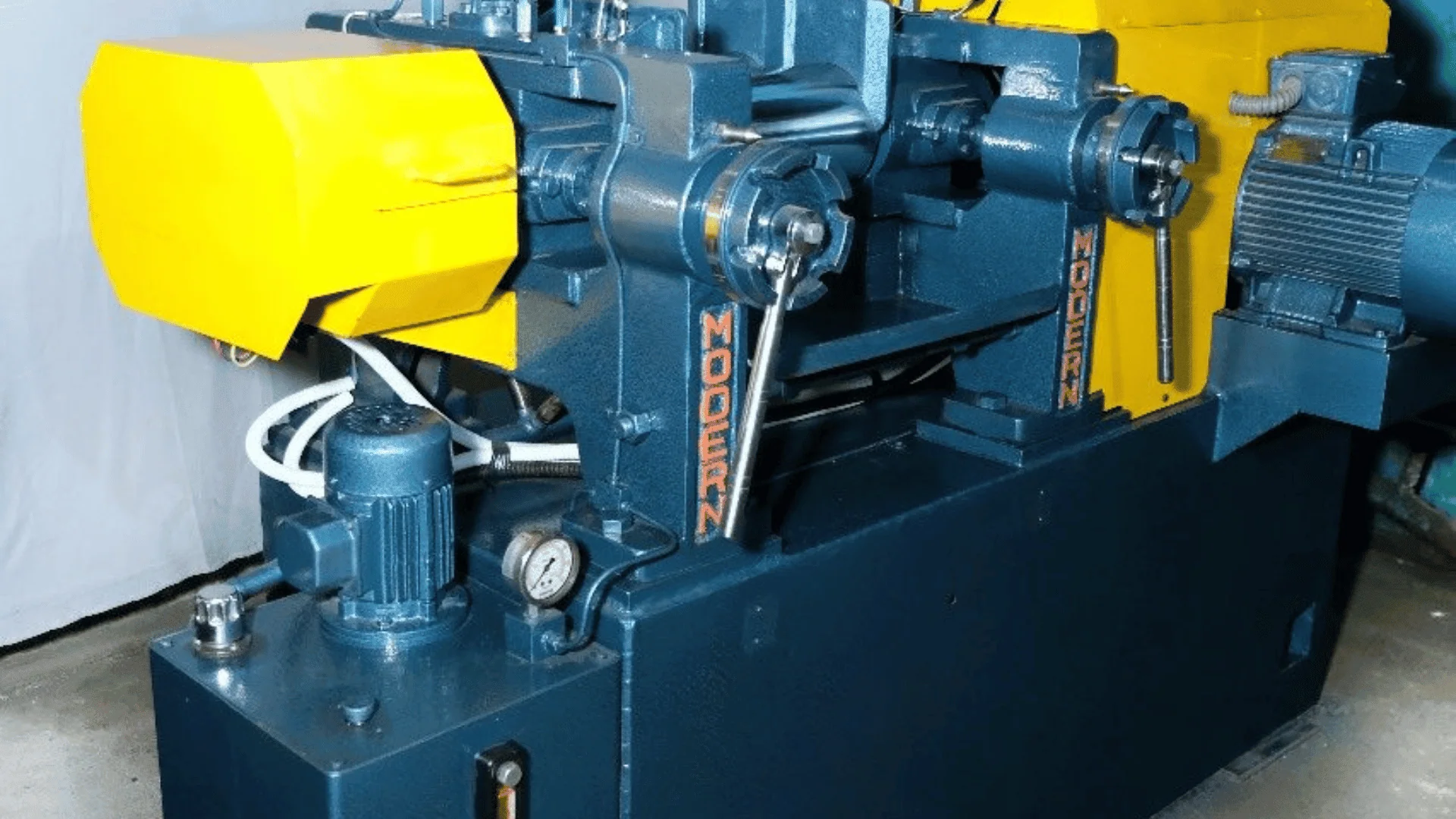

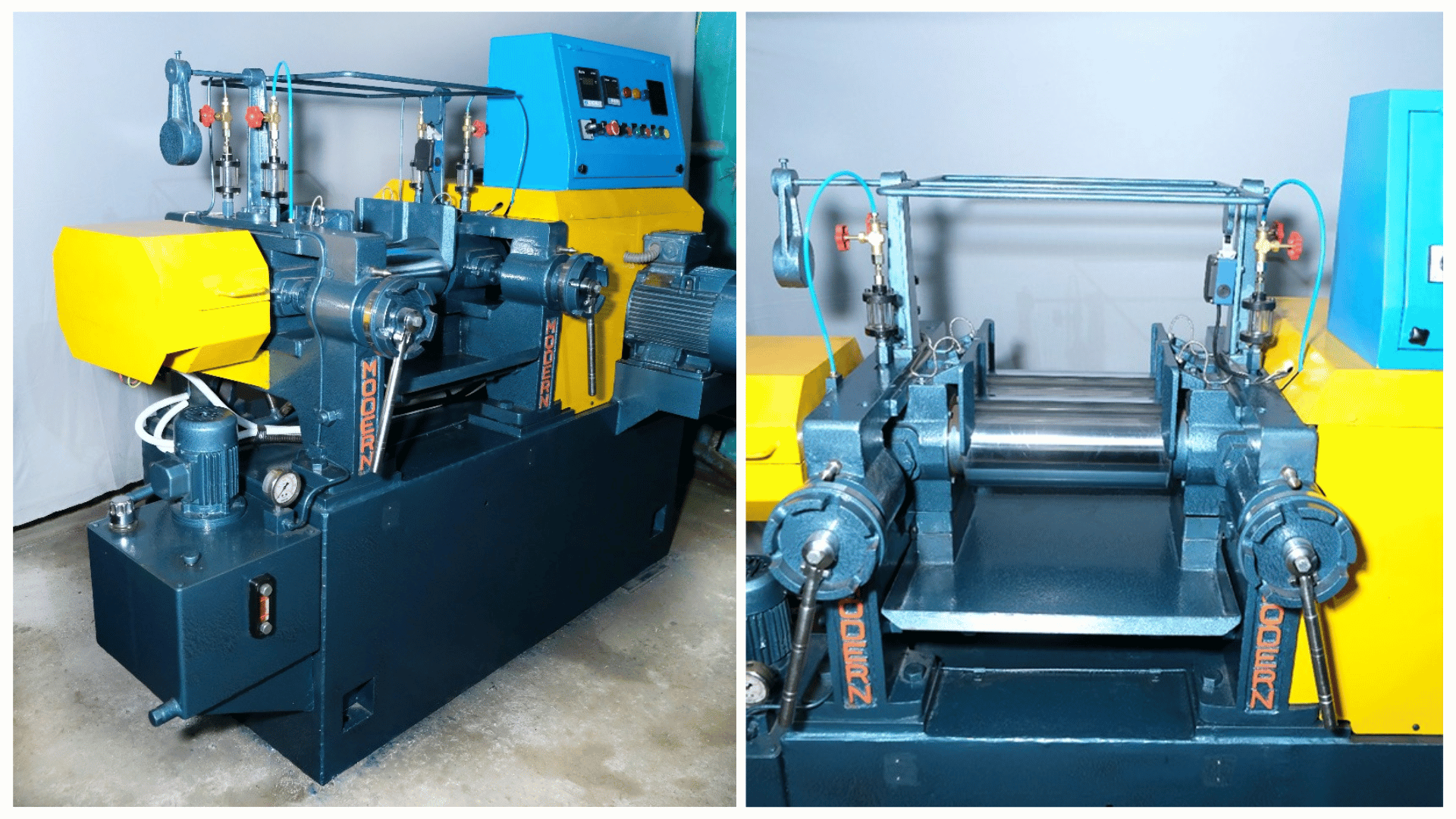

A laboratory mixing mill is a compact, precision two-roll machine designed specifically for research facilities and quality assurance departments to mix, masticate, and disperse additives into rubber or plastic polymers in small batches.
It uses two heated, counter-rotating chilled alloy rollers running at differential speeds to apply intense shearing and compression forces — creating uniform compound test samples, evaluating formulation performance, testing additive dispersion, and producing colour-matched compound sheets for quality approval before scale-up to production.
Modern Industries laboratory mixing mills are available in three roll sizes (6″×13″, 6″×15″, and 8″×18″) and four model configurations — from a standard fixed-ratio lab mill through to a fully automatic, PLC-controlled, motorised nip version for ISO-certified quality control laboratories.
Roll Sizes & Batch Capacity Guide
Modern Industries laboratory mixing mills are available in three roll sizes and four model configurations — from a standard fixed-ratio lab mill through to a fully automatic, PLC-controlled, motorised nip version for ISO-certified quality control laboratories.
| Roll Size | Batch Capacity | Application Scope |
|---|---|---|
| 6" × 13" | Up to 1 kg | Small-scale R&D / Initial compound testing / Pilot formulations |
| 6" × 15" | 1 – 1.5 kg | Standard formulation development / Colour matching / QC testing |
| 8" × 18" | 1.5 – 2 kg | High-capacity QC / Tyre lab testing / Pharma compound batches |
Tell us your batch capacity requirement (up to 1 kg, 1.5 kg, or 2 kg), your control preference (Standard, Uni-Drive, or Automatic), and your primary application. We will recommend the right model and send a quotation within one business day.
Motorised Guides & Digital Nip Sensors — The ISO QC Lab Standard
Identical Physical Parameters on Every Batch — Preferred by ISO-Certified Labs The inclusion of motorised guides and digital nip sensors on MODERN lab mills ensures that every batch is processed under identical physical parameters. In an ISO-certified quality control laboratory, reproducibility is non-negotiable. If the nip gap varies by even 0.1 mm between test batches, the resulting compound sheet thickness and dispersion quality will differ — making batch-to-batch comparison invalid. Motorised nip adjustment with digital readout eliminates operator-to-operator variation. Every batch, every shift, every operator — the same nip gap, the same conditions, the same result. This is why MODERN lab mills are the preferred choice for ISO-certified rubber testing facilities.
Key Features of Modern Industries Lab Two Roll Mill
★ Independent Drive + VFD: Exact Factory Replication in Your Laboratory
MODERN laboratory mills are equipped with independent drive systems and variable frequency drives (VFD) to allow researchers to simulate exact factory conditions on a miniature scale[cite: 47]. This is the critical capability that separates a proper laboratory mill from a basic testing machine[cite: 48]. When a researcher adjusts the friction ratio, roll speed, or motor load on the lab mill to match the production mixing mill, the compound behaviour observed in the lab directly predicts what will happen on the production floor[cite: 49]. This approach:
- Reduces material wastage during the R&D phase (only 1–2 kg test batches vs 40–80 kg production batches)[cite: 50].
- Provides accurate data for motor load, temperature profiles, and compound viscosity for scale-up calculations[cite: 50].
- Shortens the formulation-to-production cycle time significantly[cite: 50].
🌡️ Chilled Alloy Rolls with TCU Integration
- Chilled alloy roll construction — superior surface hardness for precision compound processing[cite: 62].
- Bored for heating and cooling: rolls heated by steam or electric, cooled by water[cite: 63].
- TCU (Temperature Control Unit) integration — digital temperature monitoring and control to ±1°C[cite: 64].
- Consistent temperature across the full roll width — critical for colour matching and dispersion uniformity[cite: 65].
🛡️ Multi-Tier Safety System
- Knee brakes — operator leg-operated emergency stop, hands-free safety activation[cite: 77].
- Chest guard brakes — body-contact emergency stop for close-proximity operations[cite: 78].
- Reverse system — immediate roll direction reversal for material retrieval[cite: 79].
- Overload protection — prevents motor damage on oversized or hard compound batches[cite: 80].
- Emergency stop buttons — multiple positions around the machine[cite: 81].
⚙️ VFD & HMI Uni-Drive System
- Variable Frequency Drive (VFD) allows precise roll speed control — simulate any friction ratio[cite: 67].
- HMI touchscreen interface — intuitive speed, temperature, and nip gap setting[cite: 68].
- Digital speed synchronisation display — verify both roll speeds in real time[cite: 69].
- Adjustable friction ratio — match production mill conditions exactly for scale-up accuracy[cite: 70].
- Motorised nip adjustment — remote, precise gap setting without manual spanner work[cite: 72].
- Digital nip gap display — readout accurate to 0.01 mm for ISO-grade repeatability[cite: 73].
- Optional digital thickness indicator — confirms sheet output thickness at the roll exit[cite: 74].
Who Uses Laboratory Mixing Mills?
Tyre Manufacturing QC Laboratories
Every major tyre company maintains an in-house laboratory for compound incoming quality testing and formulation development. New carbon black grades, polymer blends, or processing aids are tested on the lab mill before being approved for production batches. The MODERN lab mill's ability to simulate factory friction ratios and temperatures makes scale-up calculations reliable and accurate.
Industrial Rubber R&D Departments
Seal manufacturers, hose producers, and gasket companies use lab mills for new compound formulation — testing different accelerator systems, plasticiser levels, and filler loading without committing to full production batches. The 1–2 kg scale is ideal for screening multiple formulations per day.
Pharmaceutical & Medical Rubber Labs
Pharma rubber stopper manufacturers, surgical glove compounders, and medical tubing producers use the 8"×18" lab mill with TCU temperature control for quality control testing of incoming raw materials. The ISO QC-grade reproducibility — same nip, same temperature, same output — is essential for regulatory compliance.
Plastics & PVC Testing
In addition to rubber, Modern Industries laboratory mills are used for PVC and thermoplastic compound mixing at controlled temperatures. The TCU-integrated roll heating (up to process temperature for PVC) and the VFD speed control make the lab mill versatile for multi-material testing facilities.
Academic & Government Research Institutions
University polymer science departments, CIPET (Central Institute of Plastics Engineering & Technology) labs, and government rubber research institutes use lab mixing mills for polymer research. The 6"×13" Standard model is commonly specified for academic applications where budget is a consideration.
What is a Laboratory Mixing Mill?
Core Design
A laboratory mixing mill is a compact, precision two-roll machine designed specifically for research facilities and quality assurance departments to mix, masticate, and disperse additives into rubber or plastic polymers in small batches.
Operation Mechanics
It uses two heated, counter-rotating chilled alloy rollers running at differential speeds to apply intense shearing and compression forces — creating uniform compound test samples, evaluating formulation performance, testing additive dispersion, and producing colour-matched compound sheets for quality approval before scale-up to production.
Available Configurations
Modern Industries laboratory mixing mills are available in three roll sizes (6"×13", 6"×15", and 8"×18") and four model configurations — from a standard fixed-ratio lab mill through to a fully automatic, PLC-controlled, motorised nip version for ISO-certified quality control laboratories.
Why Choose Modern Industries Laboratory Mixing Mills?
Independent Drive & VFD
Independent drive system with VFD as standard on Uni-Drive models — exact factory condition replication on a 1–2 kg scale. Not available on most entry-level lab mills.
50+ Years Experience
50+ years of rubber machinery manufacturing — Modern Industries production mills are used in many of the same client plants that will use our lab mill for compound development, ensuring spec compatibility between lab results and production performance.
Motorised Nip Repeatability
Motorised nip adjustment with digital readout — ISO-grade batch-to-batch repeatability that eliminates operator-introduced variation.
TCU-Integrated Rolls
TCU-integrated chilled alloy rolls — precise ±1°C temperature control that matches the accuracy requirements of tyre compound and pharma rubber QC specifications.
Four Configuration Options
Four configuration options from a single supplier — Standard, Uni-Drive, Independent Drive, and Automatic — covering every lab requirement from student use to ISO production QC.
