High-performance 2-roll, 3-roll, and 4-roll configurations for tire fabric frictioning, conveyor belt topping, and thin rubber sheet production.

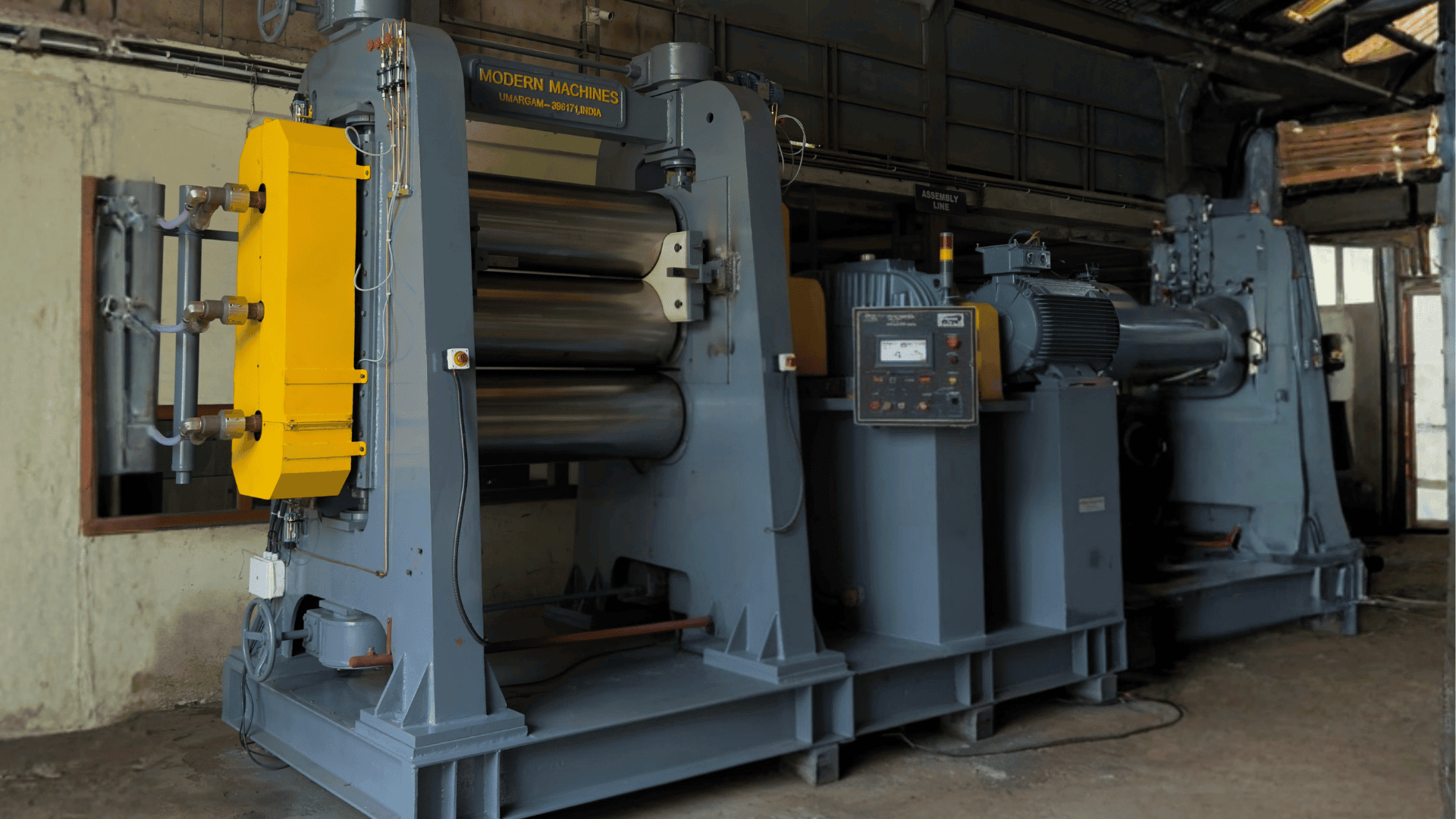

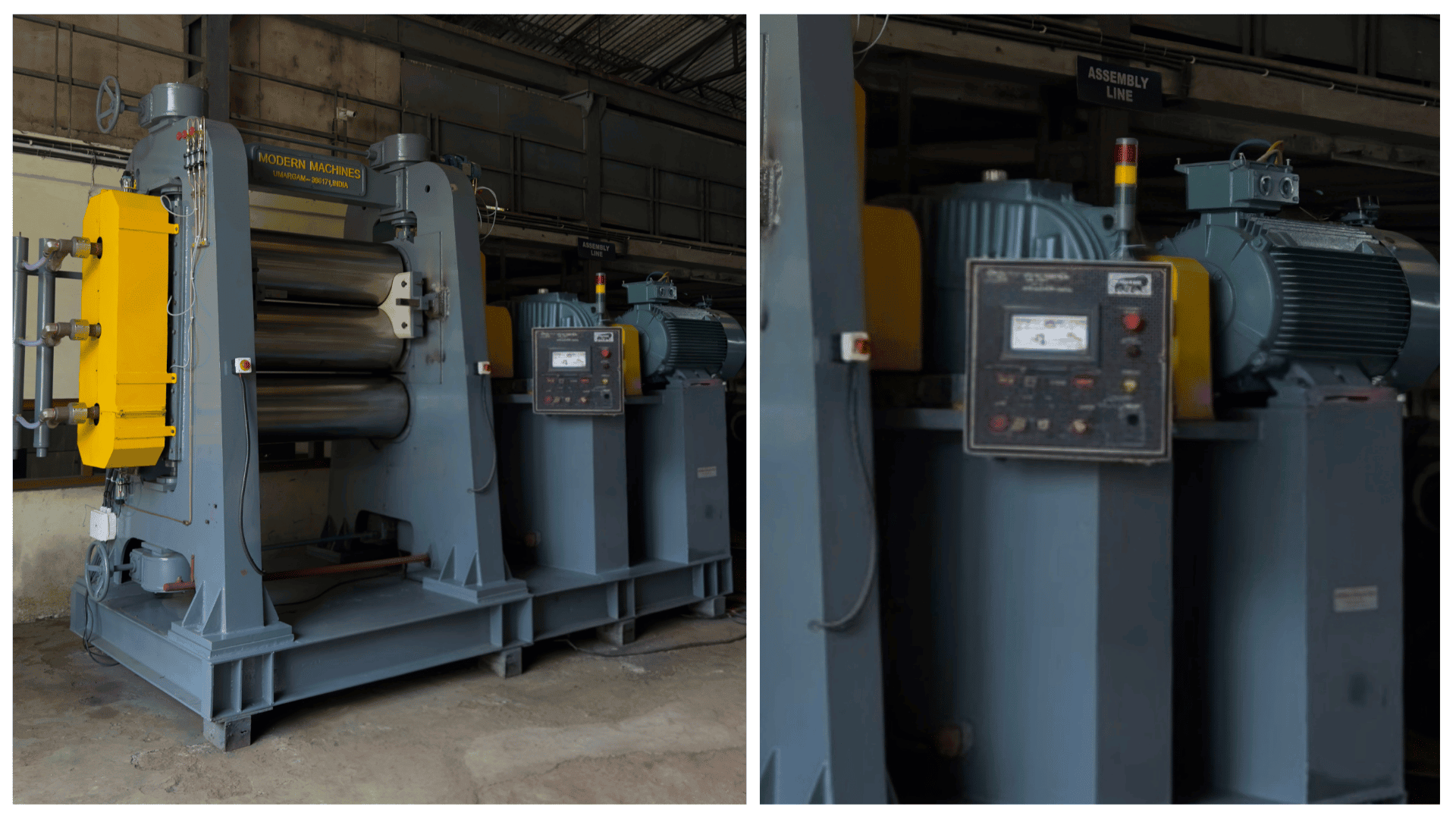

MODERN Rubber Calender Machines are designed for superior accuracy in sheeting, frictioning, and skim coating applications. Built with chilled cast iron rolls and precision-ground surfaces, these machines ensure uniform thickness across the entire width of the material. Whether processing tire cord, footwear components, or industrial rubber linings, our calenders provide the thermal stability and mechanical rigidity required for high-speed continuous production.
Applications: Essential for producing automotive seals, weatherstripping, window/door gaskets, and profiles in the construction industry.
| Feature | Description |
|---|---|
| Automation Grade | Fully Automatic with PLC & HMI Integration |
| Applications | Tyre components, rubber flooring, gaskets, hospital sheets, and coated textiles |
| Control Systems | Precise Speed Control, Nip Gap Control, and Web Tension Control |
| Roll Configurations | L-Type, Inverted L-Type, Z-Type, and Vertically stacked I-Type |
| Specialized Units | Let-off and Wind-up units with integrated heating/cooling drums |
| Model No. | Motor Power (HP) | Max Sheet Width | Friction Ratio | Line Speed |
|---|---|---|---|---|
| MI-CL-8x24 | 15 HP | 21" | 1:1.25 | 20 ~ 25 ft/min |
| MI-CL-10x30 | 20 HP | 27" | 1:1.25 | 20 ~ 25 ft/min |
| MI-CL-14x42 | 40 HP | 39" | 1:1.25 | 20 ~ 25 ft/min |
| MI-CL-18x54 | 75 HP | 51" | 1:1.25 | 20 ~ 25 ft/min |
| MI-CL-24x72 | 250 HP | 69" | 1:1.25 | 20 ~ 25 ft/min |
| Machine Size (Inches) | Metric Equivalent (Approx) | Suitable For |
|---|---|---|
| 8 x 24 | 200 x 600 mm | Small-scale / Lab testing |
| 12 x 36 | 300 x 900 mm | Medium production |
| 16 x 48 | 400 x 1200 mm | Heavy-duty industrial |
| 22 x 64 | 550 x 1600 mm | Large-scale manufacturing |
| Custom Sizes | Available on request | Variable speed/4-roll setups |
MODERN calender machines are engineered with advanced roll-crossing and crown-compensation technologies to ensure perfectly flat rubber sheets even under high-pressure conditions. The synchronized drive system allows for seamless integration with cooling drums and wind-up stations, maximizing overall production line efficiency.”
The rolls are supported by heavy-duty anti-friction bearings and housed in rigid cast-iron frames, ensuring vibration-free operation and maintaining micron-level tolerances for thin sheeting applications.
We build to your specification. Tell us your batch capacity and production requirement.
