Heavy-duty solution for slicing large natural and synthetic rubber blocks into precise portions for efficient downstream processing.

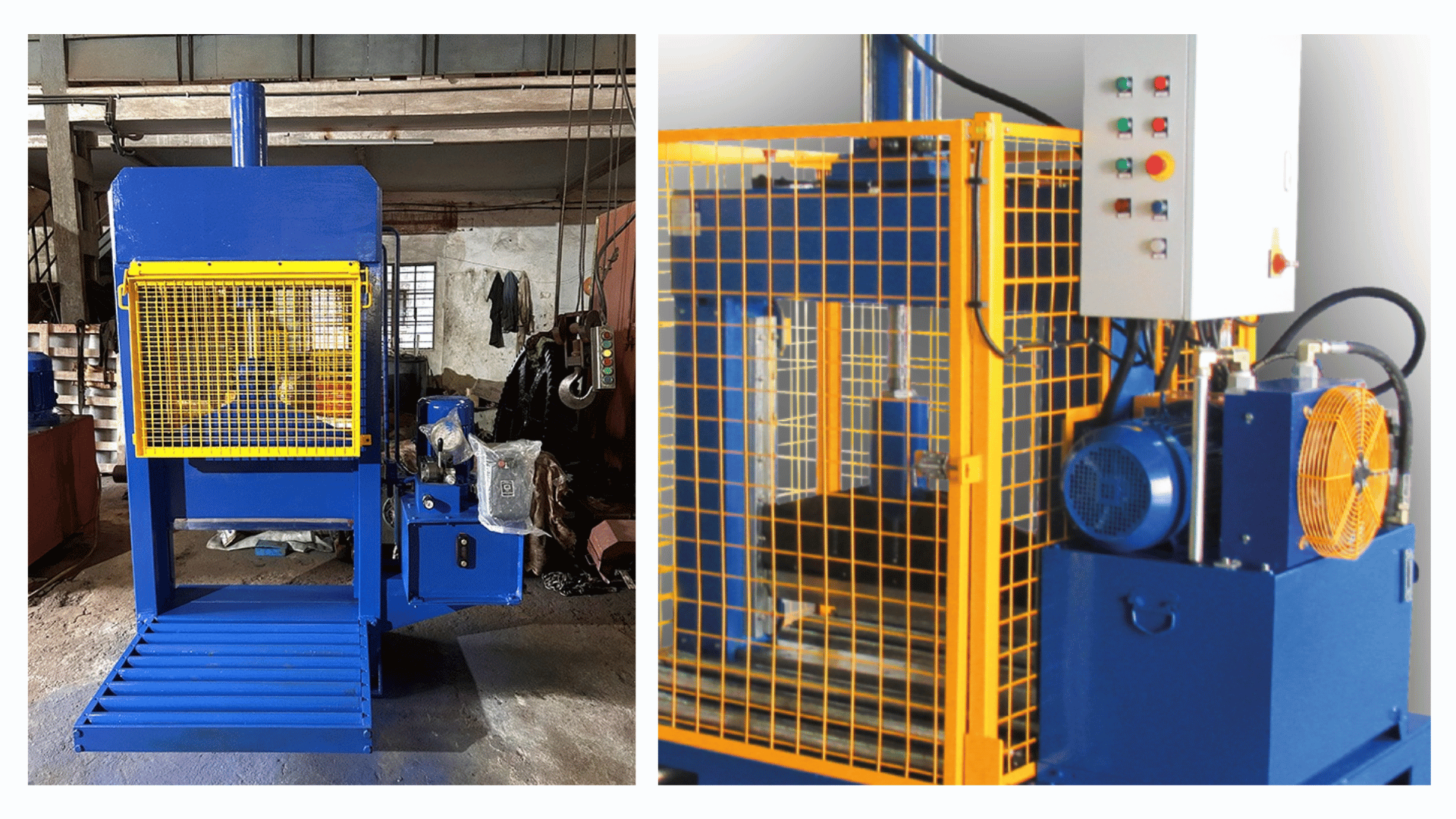

MODERN Hydraulic Bale Cutters are essential for the rubber industry, designed to slice large, dense, and compacted bales of raw natural or synthetic rubber into smaller, manageable pieces for processing. These machines utilize hydraulic or pneumatic pressure and a high-strength hardened steel blade, making them indispensable in factories for mixing, compounding, and laboratory testing.
| Feature | Benefit |
|---|---|
| Blade Material | Sharp Alloy-Steel for long-lasting durability and clean cuts. |
| Operation Type | Hydraulic Down-Stroking for powerful and controlled performance. |
| Material Support | Idler Roller Table for easy maneuvering of heavy rubber bales. |
| Application | Suitable for both Natural and Synthetic rubber processing. |
| Design Focus | High-pressure cutting at optimum speeds to increase productivity. |
| Specification | Details |
|---|---|
| Model Number | MI-BCM |
| Cutting Capacity | 20 Tonnes |
| Motor Power | 5 HP / 1500 RPM |
| Cutting Stroke | 500 mm |
| Total Weight | Approx. 1500 Kgs |
| Component | Dimensions / Measurement |
|---|---|
| Max. Bale Size | 600mm x 550mm x 440mm (HT) |
| Table Size | 760mm x 760mm |
| Machine Type | Floor-mounted Industrial Hydraulic Cutter |
“MODERN bale cutters are engineered with an optimized hydraulic power pack to deliver maximum cutting pressure at controlled speeds, preventing material deformation. The inclusion of free-moving idler rollers on the feed table reduces operator fatigue and speeds up the loading cycle for high-volume production.
The cutting stroke and blade speed are calibrated to ensure a clean shear across both natural and synthetic compounds, significantly increasing the lifespan of the cutting edge.”
We build to your specification. Tell us your batch capacity and production requirement.
