Superior internal mixing technology for masterbatches, automotive compounds, and industrial rubber products with capacities ranging from 5L to 150L.

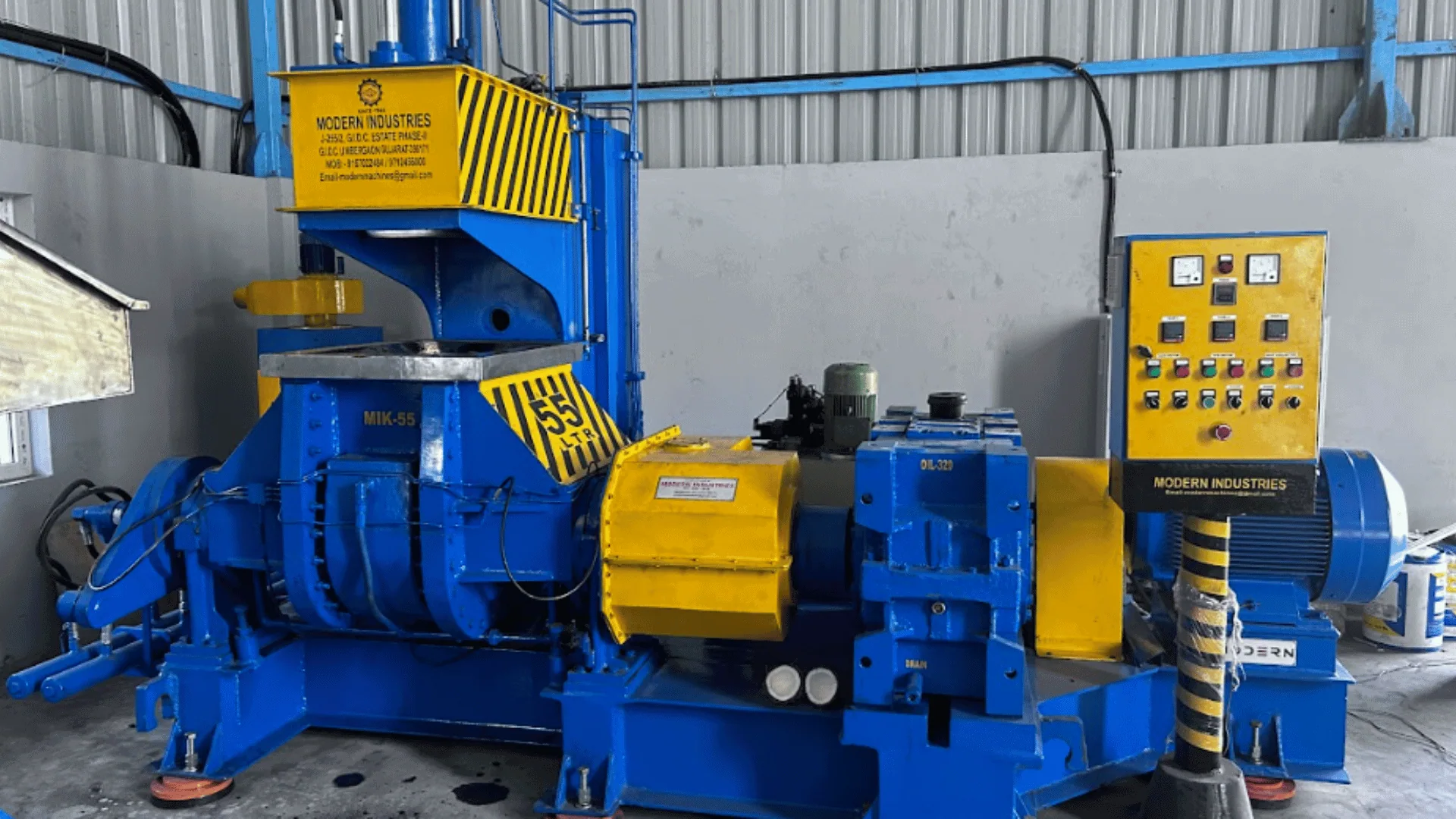

MODERN Dispersion Kneaders are precision-engineered for the intensive mixing and dispersion of rubber and plastic compounds under controlled temperature and pressure. Featuring specialized rotors and a jacketed chamber, these machines ensure optimum batch properties in minimal time. With a range of models from lab-scale 5L to high-capacity 150L, our kneaders provide the consistency required for high-grade tire, cable, and stationery manufacturing.
| Feature | Description |
|---|---|
| Automation | Fully automatic operation via PLC, HMI, and VFD (Variable Frequency Drive). |
| Mixing Type | Intensive internal mixing for rubber masterbatches and automotive components. |
| Thermal Mgmt | Real-time digital temperature indications with efficient water cooling. |
| Operations | Hydraulically operated tilting for easy material unloading and cleaning. |
| Applications | Ideal for tires, conveyor belts, hoses, cables, and industrial rubber products. |
| Model | Motor Power (HP/RPM) | Tilting Motor (HP) | Net Weight (KGS) |
|---|---|---|---|
| MIKH-1 | 7.5 / 1500 | 1 | 1800 |
| MIKH-2 | 10 / 1500 | 2 | 3100 |
| MIKH-3 | 30 / 1500 | 2 | 6200 |
| MIKH-4 | 60 / 1500 | 3 | 7500 |
| MIKH-5 | 75 / 1500 | 3 | 8500 |
| MIKH-6 | 90 / 1500 | 5 | 9500 |
| MIKH-7 | 120 / 1500 | 5 | 11500 |
| MIKH-8 | 150 / 1500 | 5 | 13000 |
| MIKH-9 | 200 / 1500 | 7.5 | 15000 |
| Model | Chamber Capacity (Liters) | Suitable For |
|---|---|---|
| MIKH-1 | 5 L | Lab Testing / Small Batch |
| MIKH-2 | 15 L | Pilot Production |
| MIKH-3 | 25 L | Small Scale Industrial |
| MIKH-4 | 35 L | Medium Industrial |
| MIKH-5 | 55 L | Standard Production |
| MIKH-6 | 75 L | High Volume Production |
| MIKH-7 | 100 L | Heavy Duty Industrial |
| MIKH-8 | 125 L | Large Scale Manufacturing |
| MIKH-9 | 150 L | Mass Scale / Mega Projects |
MODERN dispersion kneaders are equipped with a high-performance pressure lid (ram) that ensures the compound remains in the high-shear zone throughout the mixing cycle. This design significantly reduces the batch time while ensuring a homogeneous blend of rubber polymers and fine chemical ingredients.
The machine’s internal parts are treated with hard-facing or nitriding to withstand abrasive materials, ensuring long-term structural integrity and minimal maintenance in continuous production environments
We build to your specification. Tell us your batch capacity and production requirement.
